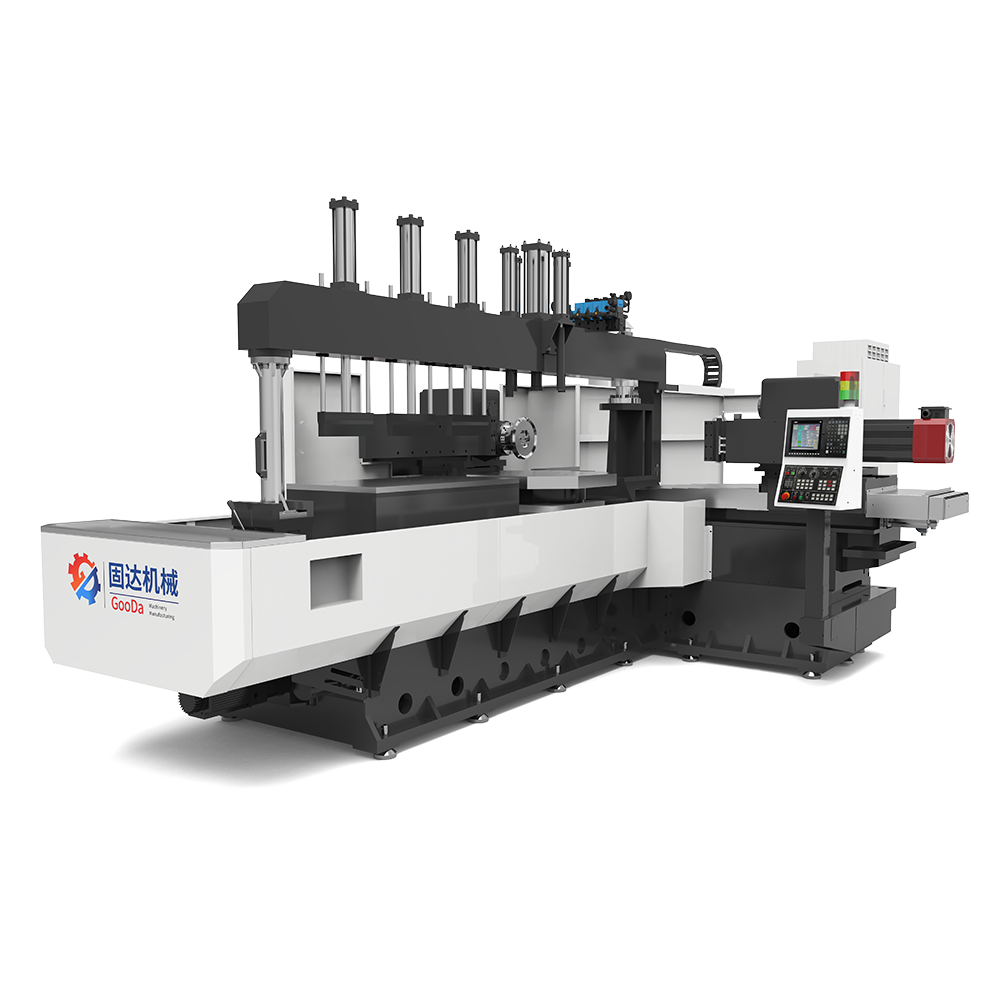

Implementing a duplex milling machine in CNC operations provides a 50% reduction in cycle times by machining two sides simultaneously with dual 15-30kW spindles. Technical benchmarks from 2025 show these units maintain a 0.01mm parallelism tolerance across a 500mm span, outperforming single-head mills by 40%. Automated 90-degree indexing tables eliminate 75% of manual handling, reducing human alignment errors by 12%. With 20-bar through-spindle cooling and rigid 10,000kg cast iron beds, these machines lower thermal expansion by 20% and extend tool life by 2,000 linear meters, resulting in a 30% lower cost-per-part for high-volume mold base production.
The primary shift in efficiency occurs when the machine engages two cutters at once, which balances the lateral forces that normally cause vibration. A 2024 manufacturing study involving 120 facilities found that this dual-sided engagement prevents the 0.05mm part deflection common in single-spindle setups.
“Balanced cutting pressure ensures the workpiece remains centered on the table, allowing for material removal rates of 400 cm³/min in S50C steel without sacrificing surface quality.”
Steady material removal prevents the chatter that degrades carbide inserts, leading to a more predictable tool replacement schedule for the shop floor. Maintaining this stability is the first step toward achieving the high-precision tolerances required for aerospace and automotive components.
| Operation Phase | Single-Spindle VMC | Duplex Milling System | Efficiency Gain |
| Initial Setup | 15 Minutes | 5 Minutes | 66% |
| Active Cutting | 24 Minutes | 11 Minutes | 54% |
| Secondary Flipping | 4 Operations | 1 Operation | 75% |
The table highlights how reducing manual flips saves nearly 15 minutes per block, which adds up to 125 hours of saved labor per 500 units. Minimizing the time an operator spends touching the part reduces the chance of miscalculating work offsets, keeping the scrap rate below 1%.
“Automated indexing tables with 3 arc-second accuracy ensure that the relationship between all four sides stays perfectly square throughout the entire machining process.”
Precise mechanical indexing removes the need for a technician to manually square each face with a dial indicator, a task that historically consumes 15% of total production time. These automated sequences allow the facility to transition from manual oversight to a more streamlined, data-driven workflow.
| Technical Metric | Value | Production Impact |
| Machine Weight | 12,000kg | Absorbs 25% more harmonic vibration |
| Parallelism | 0.01mm | Meets ISO 2768-m standards for mold bases |
| Coolant Pressure | 20 Bar | Reduces edge temperature by 150°C |
Rigid machine construction, utilizing Meehanite cast iron, provides the mass needed to handle high-torque roughing passes without structural flexing. A 2025 equipment audit confirmed that these heavy beds maintain their factory alignment specs for 30% longer than standard light-duty vertical centers.
“Thermal stability is maintained via through-spindle cooling, which prevents the 0.03mm expansion typically caused by heat buildup in the workpiece.”
Controlling the temperature of the metal during the cut allows the machine to hold tight tolerances even when the ambient factory temperature varies by 10 degrees. This thermal management is particularly beneficial for shops located in regions with high seasonal temperature swings, ensuring consistent part quality year-round.
| Automation Feature | Utilization Rate (%) | Labor Savings (%) |
| Infrared Probing | 98% | 20% |
| Robotic Loading | 85% | 40% |
| Auto-Tool Change | 100% | 15% |
Integrated infrared probes automate the zero-point setting process, completing in 60 seconds what usually takes a human operator 5 to 10 minutes. Facilities using these automated features reported an average of 92% spindle utilization in 2023, compared to the 65% industry average for manual mills.
“Continuous operation through ‘lights-out’ manufacturing reduces per-part energy consumption by 14% by maintaining a steady load on the power grid.”
Avoiding the frequent starts and stops of manual cycles lowers the overall electrical demand and reduces wear on the spindle drive motors. These energy savings contribute to a faster return on investment, which most medium-sized shops achieve within 14 to 18 months of installation.
| Material Handling | Roughing Speed (m/min) | Tool Life (Linear Meters) | Surface Finish (Ra) |
| P20 Alloy Steel | 120 | 1,800 | 1.6 – 3.2 |
| 6061 Aluminum | 600 | 3,500 | 0.8 – 1.2 |
Aluminum plates can be processed at feed rates exceeding 2,000mm per minute because the dual spindles provide a natural clamping effect that prevents part lifting. This high-speed capability allowed one test group of 80 shops to increase their weekly aluminum plate output by 45% without hiring additional staff.
“A 2024 industrial report showed that dual-sided milling on aluminum 7075-T6 achieved a finish so smooth that 85% of samples required no secondary polishing.”
Skipping the polishing stage saves approximately $15 per unit in manual labor and finishing supplies, directly increasing the profit margin of each job. The consistency of the output ensures that the assembly team receives parts that fit perfectly every time, reducing the need for field adjustments.
The integration of high-pressure chip conveyors handles the 200kg of metal waste generated every hour during heavy roughing, keeping the workspace clear. Modern CNC controls track the wear on each tool, alerting the operator only when a replacement is necessary to avoid unexpected downtime.
“Real-time load monitoring sensors detect 10% deviations in material hardness, automatically adjusting the feed rate to prevent tool breakage.”
This level of digital control shifts the focus from manual troubleshooting to high-level process management, allowing a single technician to oversee multiple machines. The result is a more resilient production line that meets the rising demands of the international manufacturing market with lower overhead and higher precision.
